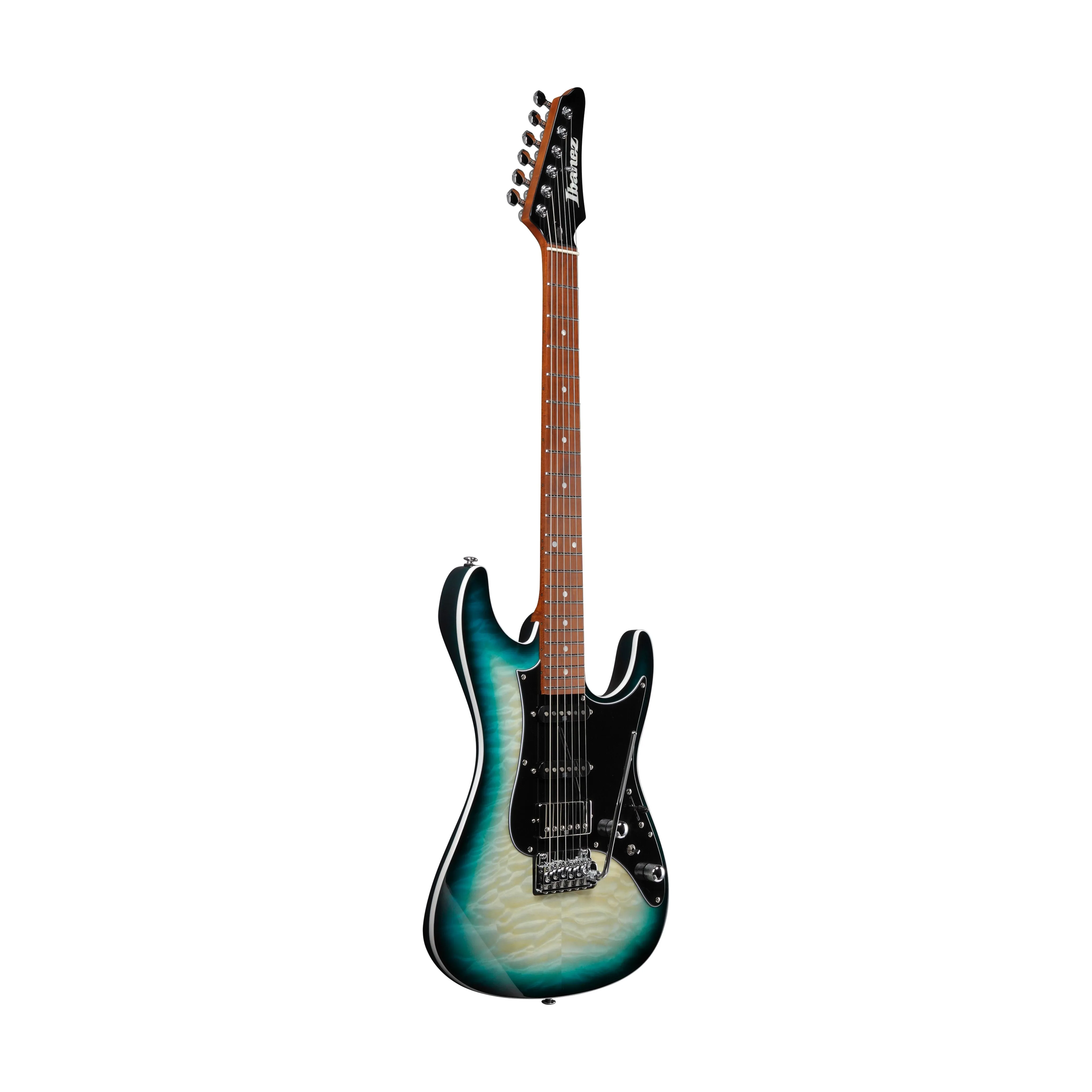

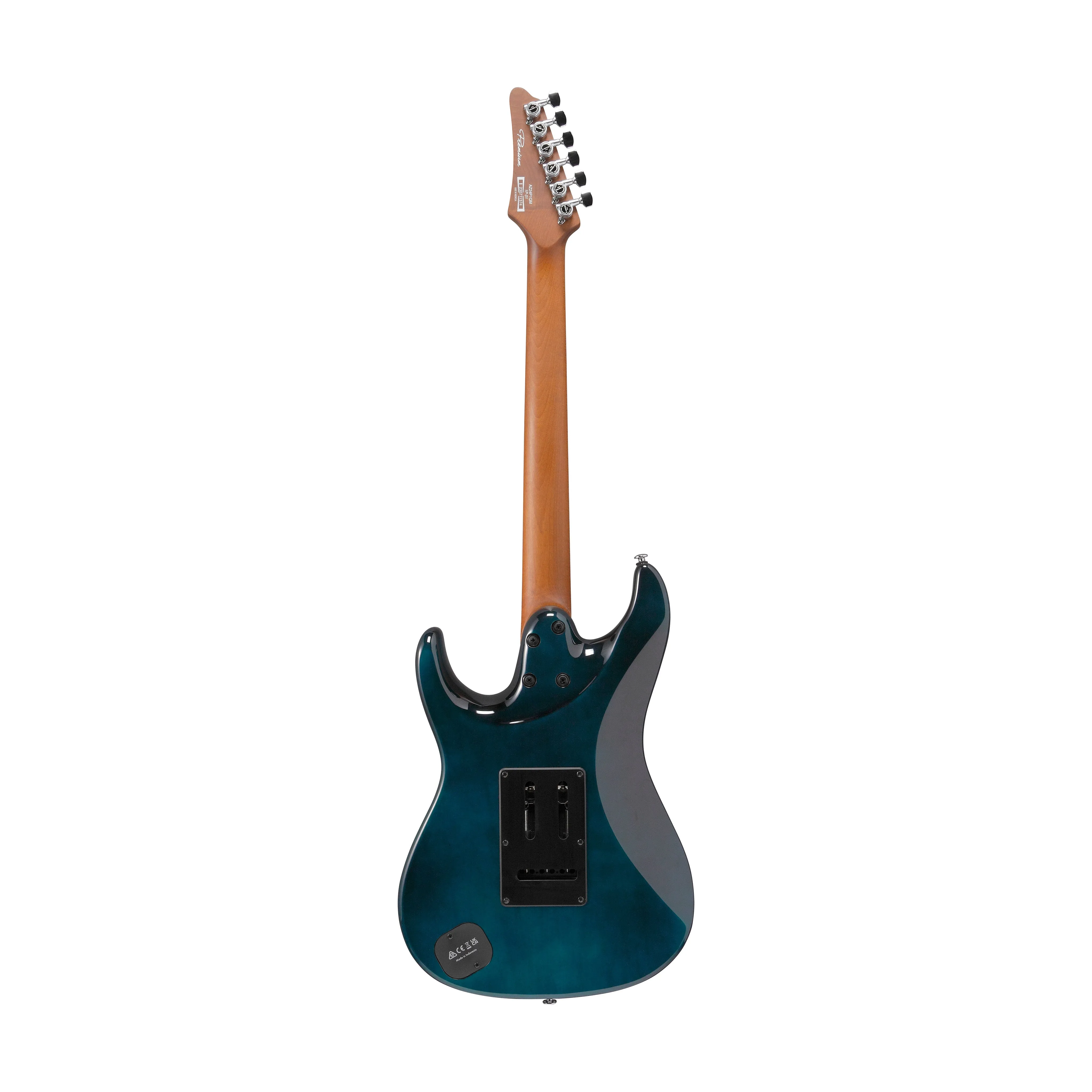

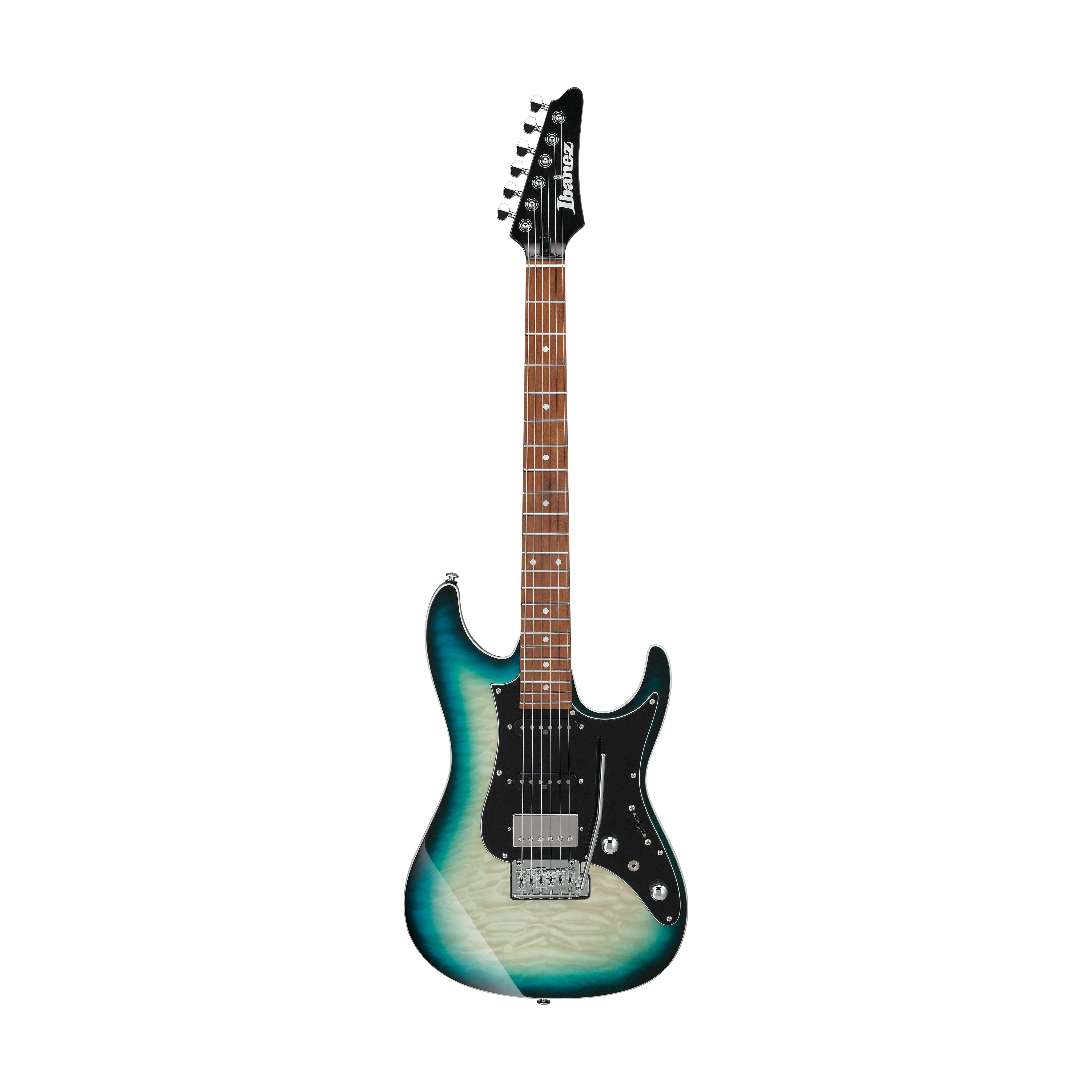

Ibanez introduced the AZ24P1QM in 2024, a solid-body electric guitar belonging to the AZ series. Crafted in Indonesia, it is part of the mid-tier Premium line. The AZ24P1QM features a quilted maple top on an American basswood body bolted to a roasted maple neck with a roasted maple fingerboard with 22 stainless steel frets, mother-of-pearl dot position markers and luminescent side dots. Components include direct-mounted Seymour Duncan Hyperion pickups with a humbucker with a chrome cover at the bridge and single-coils in the neck and middle positions, a Gotoh T1502 two-point synchronized tremolo bridge, a Graph Tech TUSQ nut, Sure Grip III knobs, and Gotoh locking tuning machines.
Specifications:
- Body Material: Quilted Maple (Top), American Basswood (Body)
- Neck Profile: AZ Oval C
- Fretboard Material: Roasted Maple
- Fretboard Radius: 305mmR
- Scale Length: 25.5" (648mm)
- No. of Frets: 22 Jumbo Stainless Steel Frets
- Fretboard Inlays: Mother-of-Pearl Dot Inlay

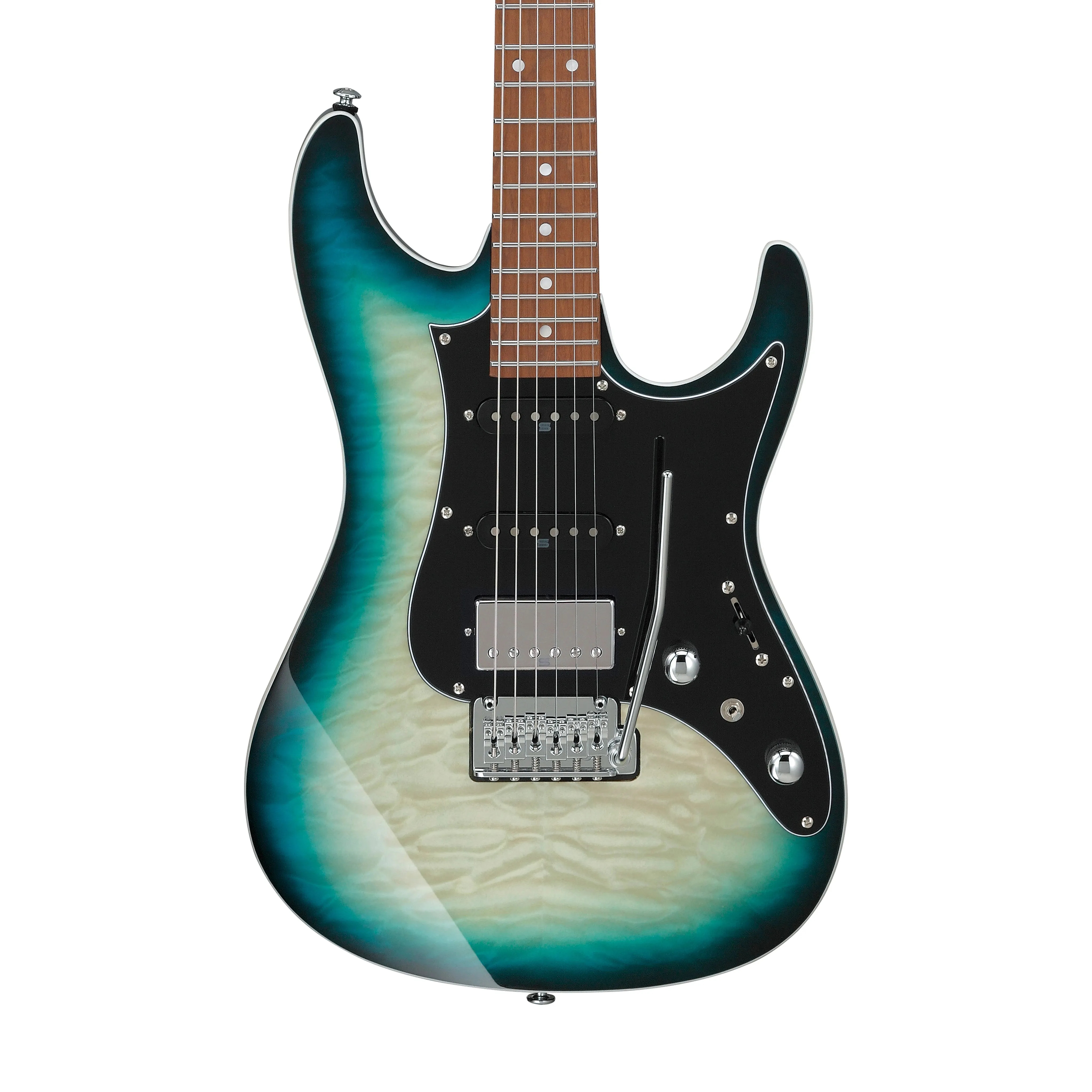

- Pickups: Seymour Duncan® Hyperion™ Passive/Alnico Humbucker (Bridge), Seymour Duncan® Hyperion™ Passive/Alnico Single-Coil (Middle), Seymour Duncan® Hyperion™ Passive/Alnico Single-Coil (Neck)

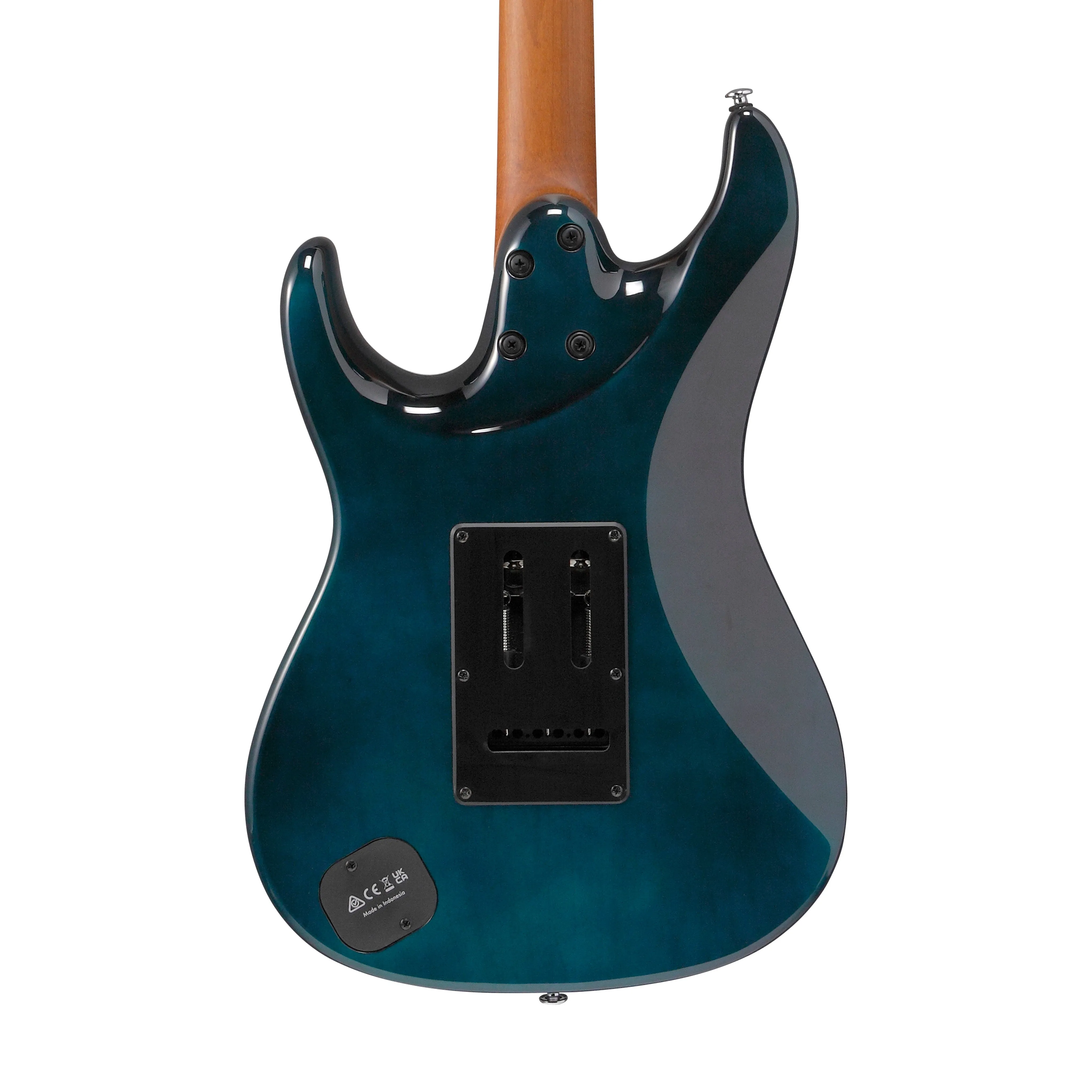

- Bridge: Gotoh® T1502 bridge
- Pickguard: Black
- Strings: D'Addario® EXL110, .010, .013, .017, .026, .036, .046 Gauges

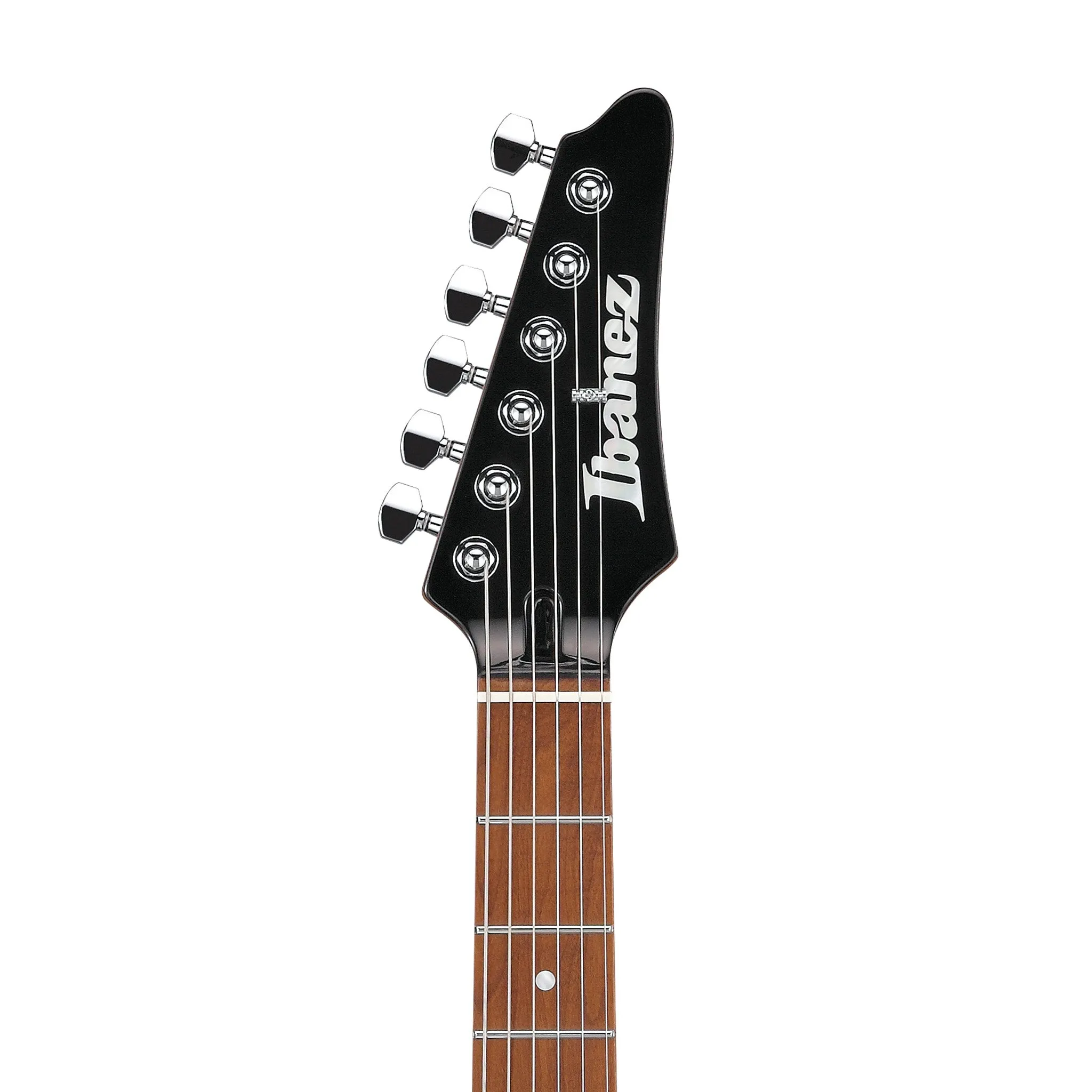

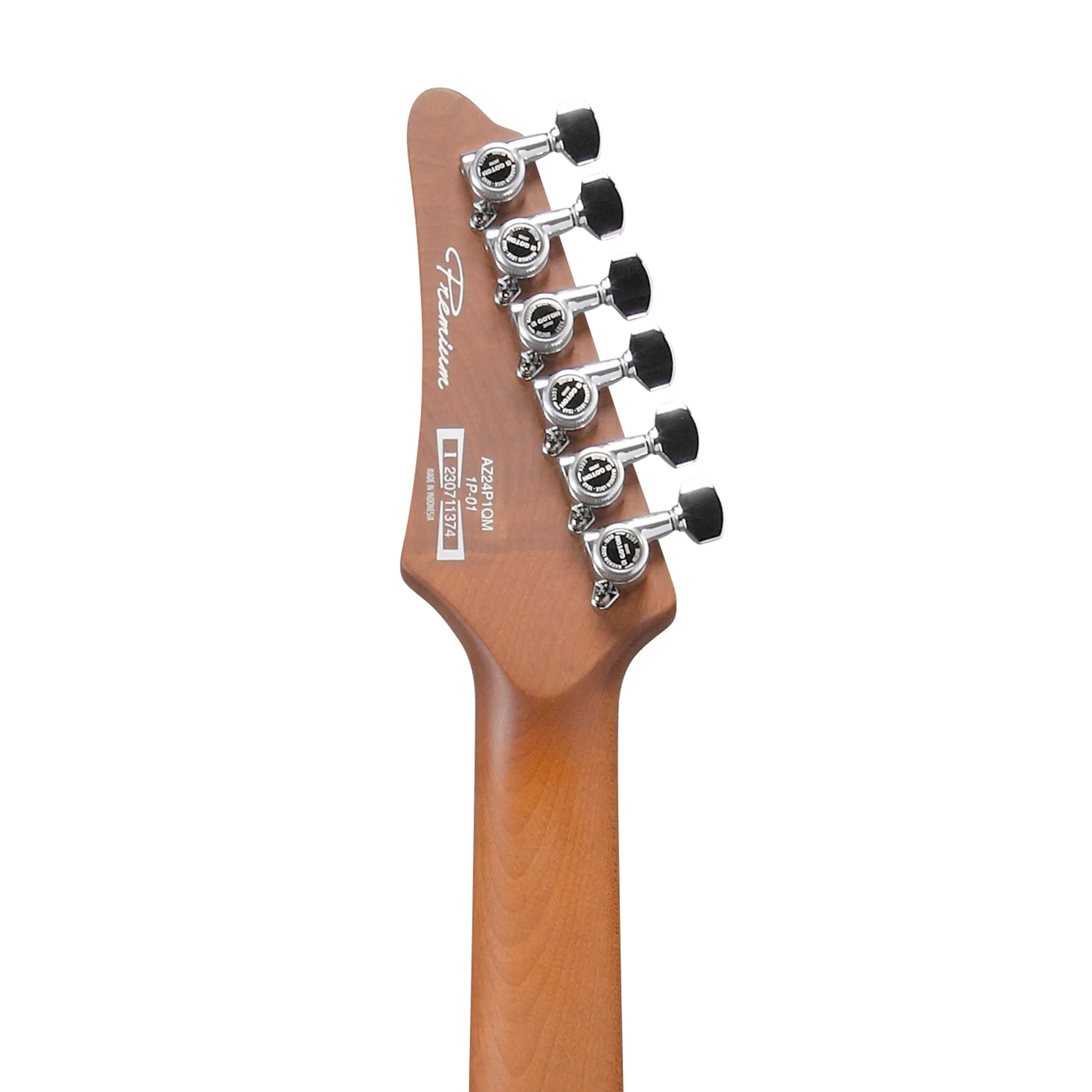

- Tuning Machines: Gotoh® MG-T locking machine heads
- Hardware Finish: Chrome

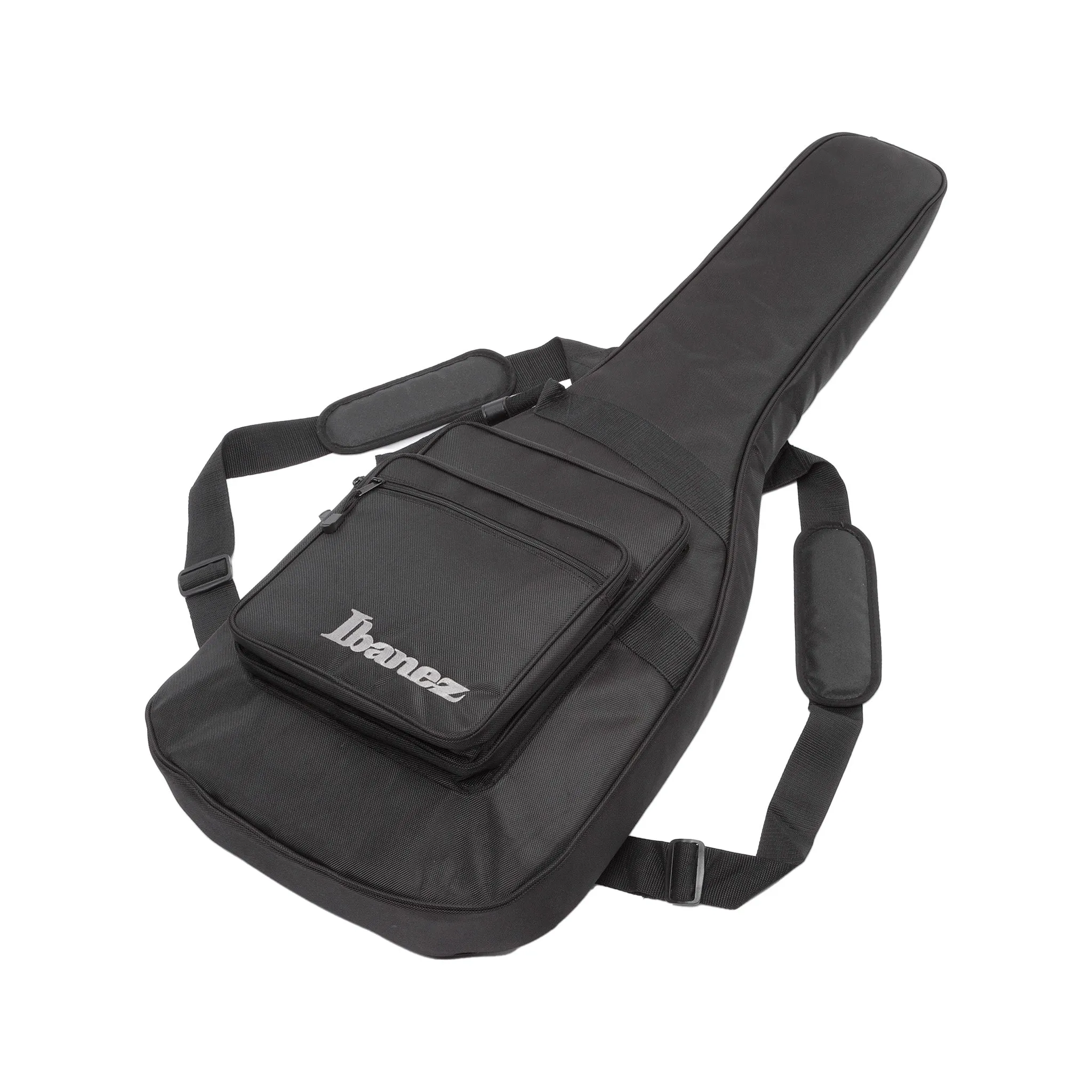

- Case: Gig Bag
