The latest from Toolkit is a feature-packed multi-purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your packs, but you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCS, and use your LiPos for device charging (up to 20W PD)!

Features

• Large Color Screen

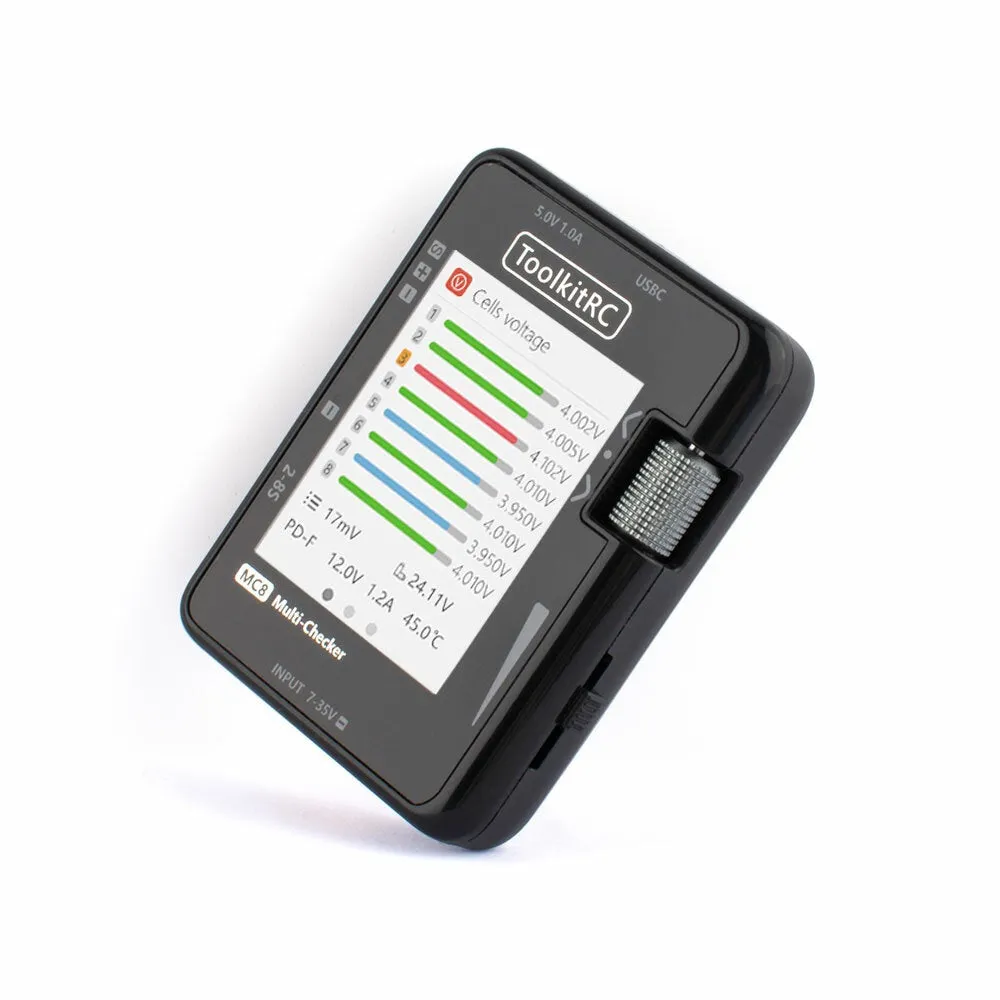

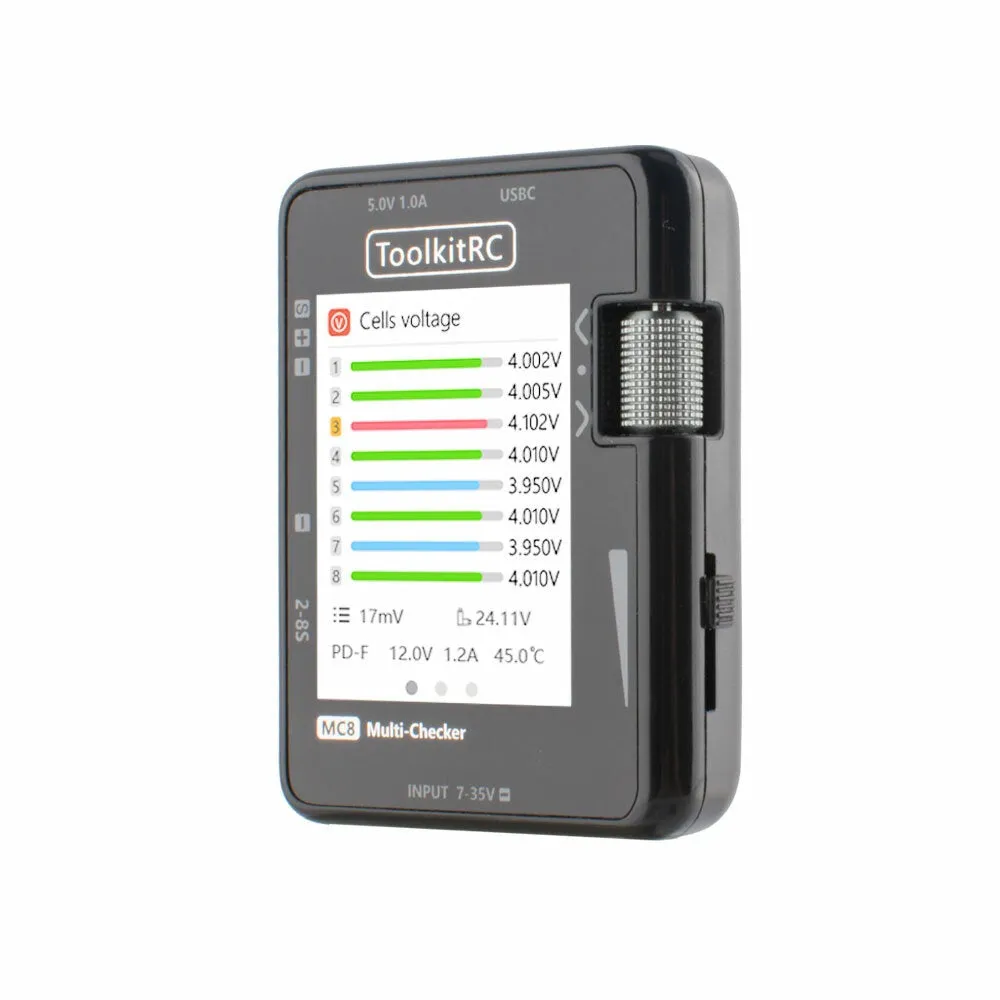

• Battery Status Display
• PWM/PPM/SBUS Readout
• PWM Output
• One Touch Battery Balancer
• PD Fast Charging
• Metal Roller UI Control
• Innovative Slider Output Control

Specifications

• LCD: 2" IPS 320x240
• Dimensions: 68x50x15mm
• Weight: 50g

Checker

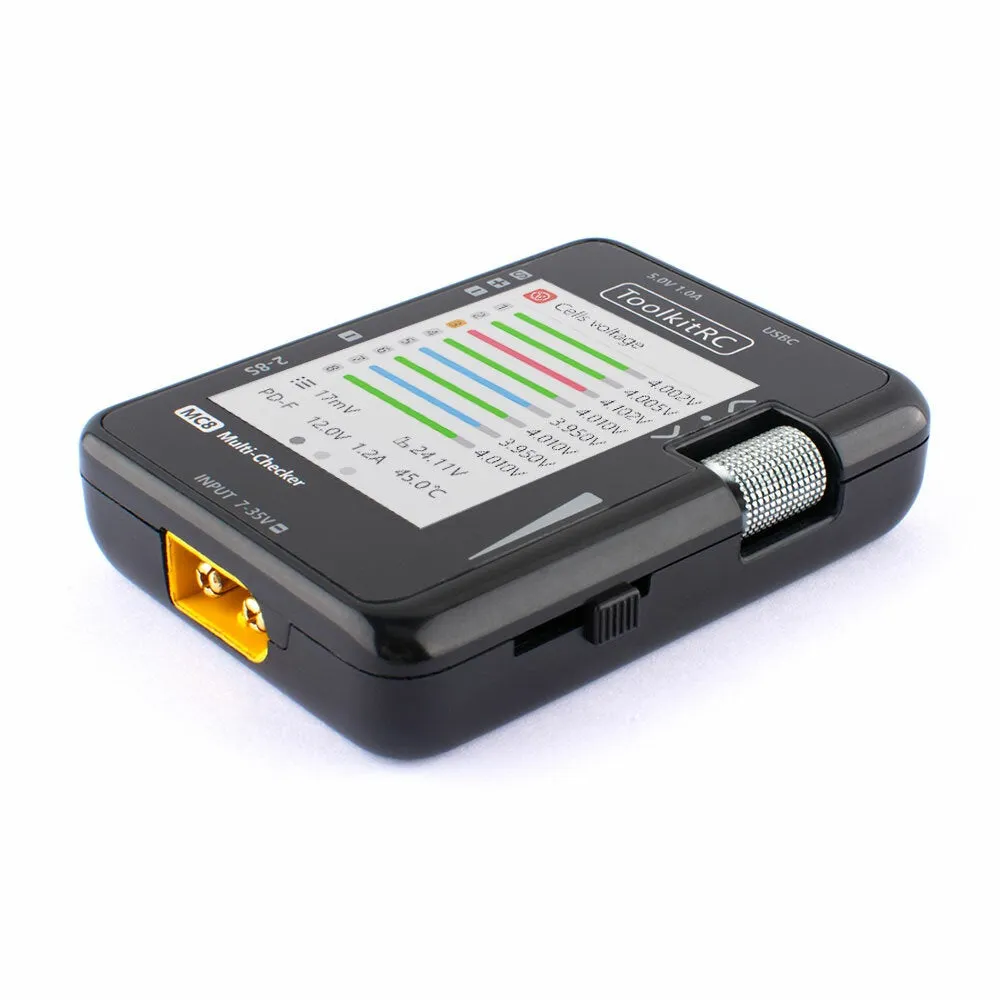

• Main Input port: XT60 7.0-35.0V
• Balance input: 0.5V-5.0V Lixx 2-8S
• Signal port input: <6.0V
• Balance current: MAX 60mA @2-8S
• Balance accuracy: <0.005V @ 4.2V
• USB-A output: [email protected] firmware upgrade
• USB-C output: 5.0V-12.0V @MAX 20W
• USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

Measurer

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

Output

• PWM: 1000-2000us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

Includes

• 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
